The flexible Pallet AGV for intralogistics

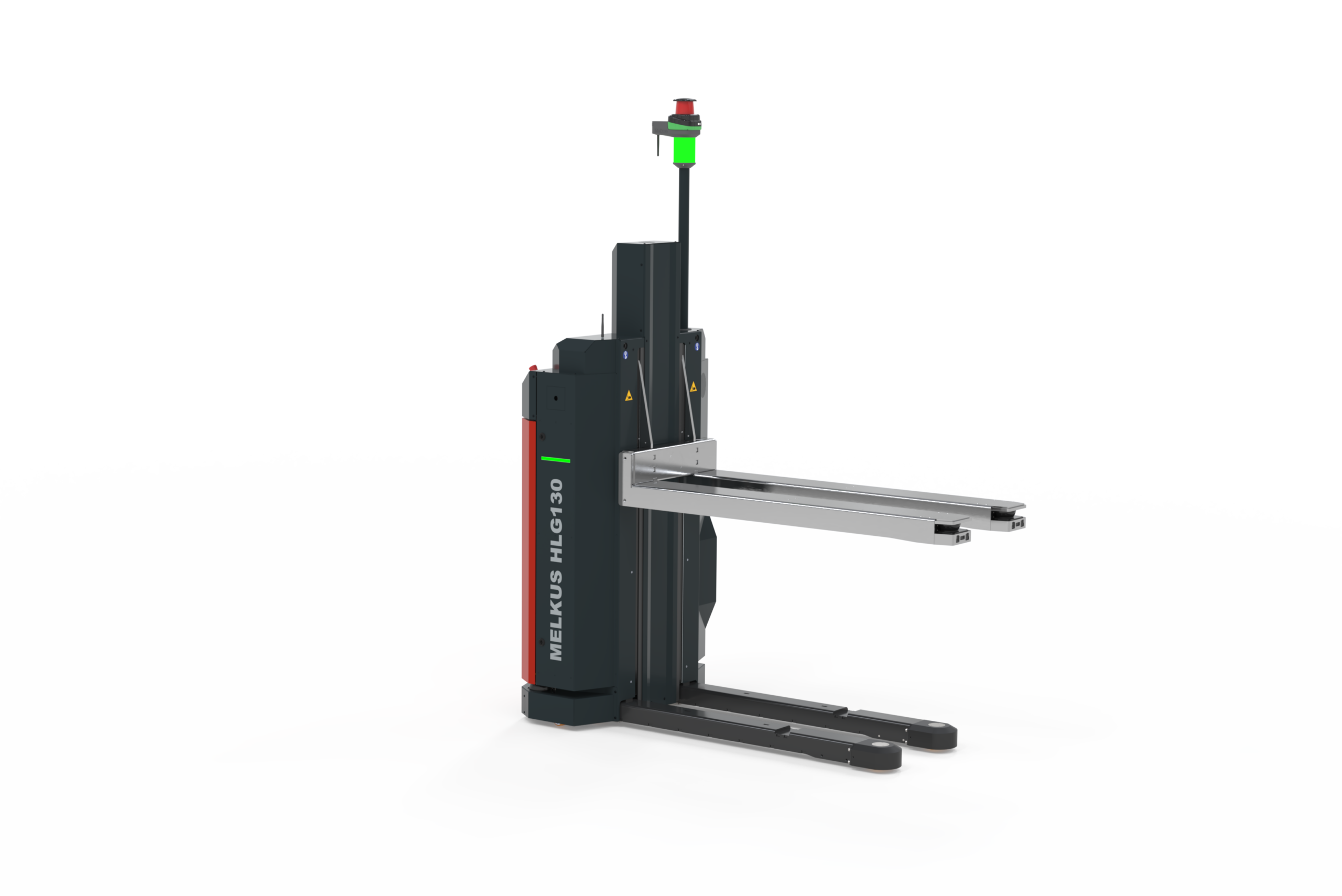

Melkus HLG130

Lifting, moving, transporting and transferring load carriers – these are the tasks of the best-selling, intelligent Melkus pallet AGV. The Melkus HLG120 combines the latest technology with industrialgrade design. It offers high payload capacity with high lifting height and minimal space requirements, with a focus on safety.

Technical data

  • Load capacity: 1,300 kg

  • Speed: 1.5 m/s

  • Navigation: SLAM Lidar Navigation (+/- 1cm)

  • Dimensions: 1,801 mm x 800 mm x 1,721 mm (L x B x H) without pillar
    Signal pillar: standard height 2,236 mm

  • Weight: 400 kg

  • Lifting height: 800 mm

  • Turning circle diameter: 1,833 mm / 1,946 mm with Euro pallet

  • Drive technology: Omnidirectional

  • Fork height: 87 mm

  • Fork length: 1,300 mm

MELKUS HLG130

THE FLEXIBLE PALLET AGV FOR INTRALOGISTICS

Flexible

  • Multi-Differential Steering enables use in the tightest space

  • Free range of motion in all directions

  • SLAM-Navigation

  • Operation and diagnostics also with smart devices

  • Easy integration into existing systems (REST API, MQTT, VDA 5050)

Intelligent

  • High personnel safety via four 275° laser scanners

  • Compact automation solution from SIGMATEK

  • WLAN communication with the guidance system

  • Gentle material transport and low floor wear due to smart drive technology

  • Flexible task creation

Efficient

  • Reduced path due to transverse drive capability

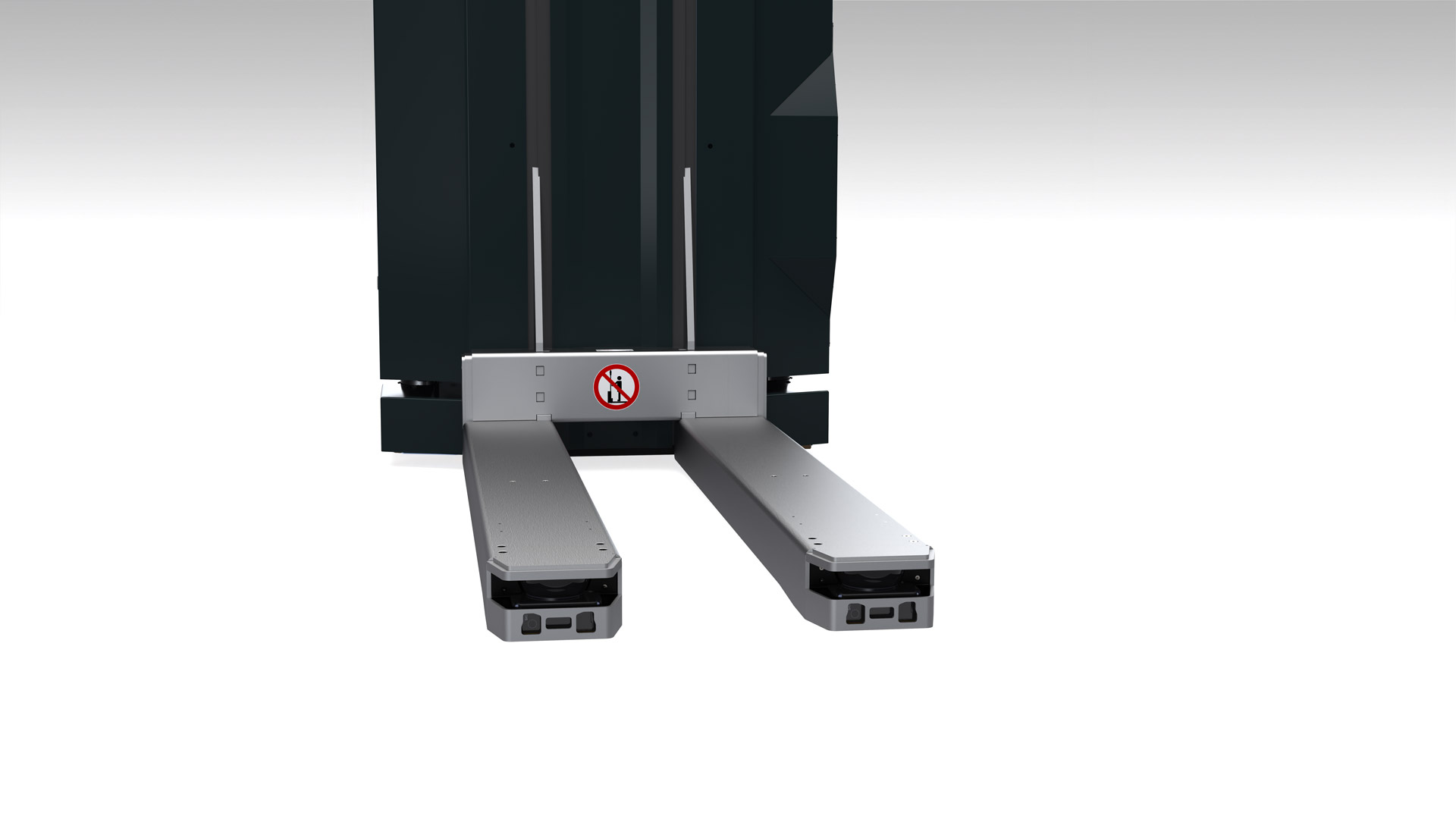

  • Free standing lifting forks facilitate load handling

  • LiFePo4 high performance power-packs with battery capacity of 2x 1.1 kWh

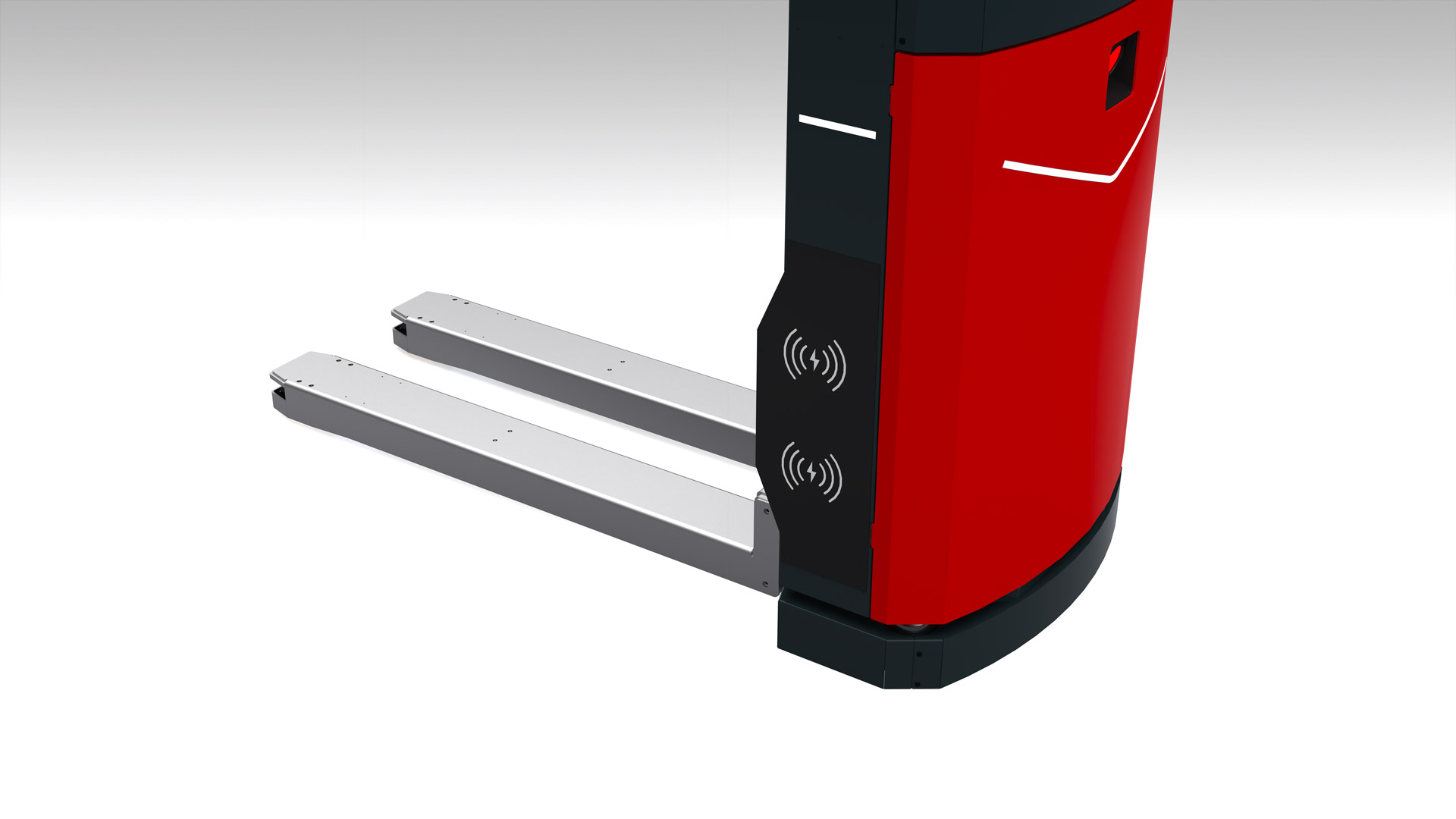

  • Always ready for use via innovative wireless charging technology

  • No wear of the charging contacts

  • Energy efficiency due to low net weights

  • Low maintenance due to modular design

Application areas

  • Point-to-point transport

  • Transport tasks in limited space conditions

  • Material and workpiece transport in the production area

  • Storage logistics and commissioning tasks

Features

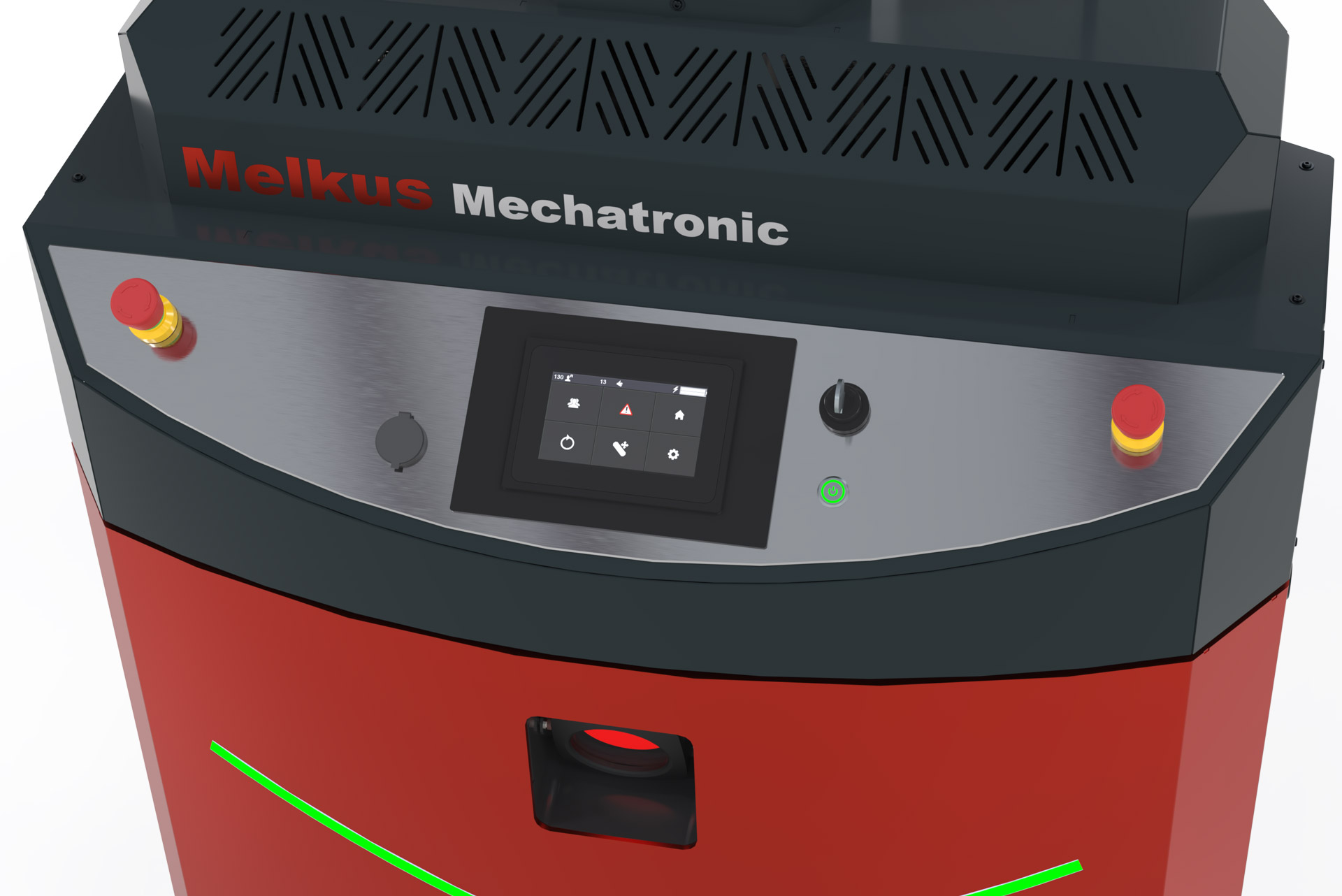

  • 4.3″ Touchpanel

  • LED status display in cover and laser pillar

  • Safety light with arrow projection

  • Laser-supported pallet detection

Optional accessories

  • Load-supporting bar

  • 2 additional batteries

  • Mounting of further sensors on request (barcode scanner, 3D camera etc.)

  • 7″ Touchdisplay
